Gardner denver Elmo Rietschle VC100 Vacuum Pump: A Comprehensive Technical Overview
The GardnerDenver Elmo Rietschle VC100 represents a benchmark in oil-lubricated rotary vane vacuum technology, delivering robust performance for industrial applications requiring consistent vacuum levels down to 0.1 mbar absolute. As a flagship model within the renowned V-Series portfolio, this pump combines decades of German engineering expertise with modern efficiency standards, making it a staple solution across packaging, plastics, pharmaceuticals, and food processing sectors.
Design Architecture and Core Specifications

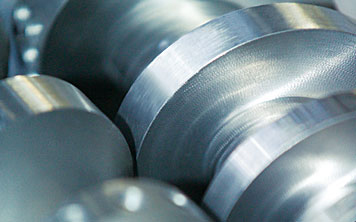

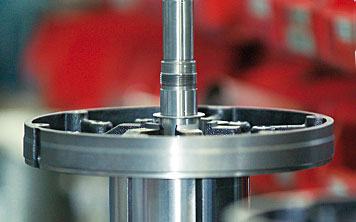

The VC100 utilizes an oil-flooded rotary vane mechanism where specially treated aluminum vanes slide within an eccentrically mounted rotor, creating three dynamic compression chambers that capture and compress air through volume reduction. The pump achieves a flow rate of 70.6 to 106 cubic feet per minute (CFM) while maintaining an ultimate vacuum of 29.91 inches of mercury, equivalent to 0.1 mbar absolute pressure. Its compact, lightweight construction facilitates seamless system integration, while the flange-mounted motor configuration with bearings positioned on both sides of the rotor ensures exceptional mechanical stability and extended service intervals.
A critical design element is the integrated oil/air heat exchanger, which comes as standard equipment and actively regulates operating temperature by dissipating compression heat through forced-air cooling. This thermal management system prevents oil degradation and maintains optimal viscosity, particularly crucial in continuous-duty applications. For demanding environments involving wet or humid processes, the XD-version variant offers enhanced vapor tolerance and solvent resistance, expanding the VC100's applicability to chemical and pharmaceutical processes including crystallization, degassing, distillation, and vacuum filtration.
Advanced Oil Management System
The lubrication system operates through differential pressure between the compression chamber and oil separator housing, eliminating the need for auxiliary oil pumps. During operation, a fine oil film coats the entire cylinder housing, enabling the vanes to run with minimal wear while simultaneously providing sealing, cooling, and corrosion protection. The oil separator housing employs a sophisticated multi-stage mechanical separation process that removes 95-98% of oil content from the discharged gas stream. Remaining oil aerosols pass through fine filter elements where coalesced particles are reintroduced into the pump's oil circuit via a float valve mechanism, ensuring virtually oil-free exhaust while maximizing lubricant recirculation efficiency.
This closed-loop oil management delivers multiple operational benefits: reduced friction extends vane lifespan, optimized oil-water separation enhances water vapor handling capability through adjustable gas ballast valves, and the system maintains quiet operation below 70 decibels—ideal for noise-sensitive industrial environments. The result is a virtually pulsation-free vacuum source with high tolerance for humid process gases.
Application Versatility and Industry Solutions
The VC100's balanced performance profile makes it suitable for both centralized vacuum systems and dedicated process equipment. In packaging applications, it provides reliable vacuum hold-down for thermoforming machines and carton erectors. The plastics industry utilizes its consistent vacuum generation for extrusion calibration and dehumidification processes. Pharmaceutical manufacturers employ the pump for sterile filtration, freeze drying, and solvent recovery operations where contamination-free vacuum is paramount.
Environmental engineering applications showcase the VC100's durability in dust extraction systems, aeration processes, and industrial drying operations. For woodworking facilities, the pump's robust construction handles continuous-duty dust collection while maintaining stable vacuum levels for CNC router hold-down tables. The food processing sector benefits from its oil-lubricated design in vacuum packaging lines and bottling machines, where the pump's gas ballast feature effectively manages water vapor from product moisture.
Maintenance and Genuine Parts Support
GardnerDenver's global service network ensures comprehensive support through genuine OEM parts and maintenance kits. For the VC100, service intervals are streamlined through modular filter elements that reduce the total number of replacement components, lowering operational expenses. Standard service kits include exhaust filters, inlet screen filters, and gas ballast filters, while major rebuild kits provide compression springs, sight glasses, coupling elements, and complete vane assemblies.
The 731468 exhaust filter element, specifically designed for VC100/150 models, features a four-filter configuration in the standard service kit, ensuring complete oil mist separation. Critical wear components such as the 300121 ring gasket maintain sealing integrity at operating temperatures, while the rebuild kit's 716292 compression springs and 725013 sight glass assemblies restore original factory performance. Using genuine Elmo Rietschle filters guarantees optimal particle separation efficiency without requiring additional fasteners, preserving vacuum pump performance and warranty compliance.
Economic and Operational Advantages
Compared to dry contactless technologies, the VC100 offers superior cost-effectiveness without sacrificing flow capacity or ultimate vacuum performance. Its oil-sealed design enables higher compression ratios in a single stage, reducing equipment footprint and capital expenditure. The pump's user-friendly maintenance architecture allows quick access to all service points, minimizing downtime during routine inspections or component replacements. When operated according to manufacturer specifications—including proper exhaust line installation for hazardous gases, ATEX certification compliance for explosive atmospheres, and regular oil level monitoring—the VC100 delivers years of reliable service with minimal total cost of ownership.
Conclusion
The GardnerDenver Elmo Rietschle VC100 vacuum pump exemplifies industrial vacuum engineering excellence through its intelligent integration of proven rotary vane principles, advanced oil management, and application-specific adaptability. By combining robust construction with energy-conscious design and comprehensive global support, the VC100 continues to set the standard for reliable, cost-effective vacuum generation in demanding industrial environments worldwide. Whether deployed as a standalone unit or integrated into complex process systems, this pump delivers the performance, durability, and operational economy that modern manufacturing facilities demand.
